Record Power Dovetail Chisel Woodturning Tool with 80° Angle

Description

The dovetail tool profile is ground to 80° to match the dovetail angle of the Record Power chuck jaws, helping create the perfect dovetail angle in a recess or spigot.

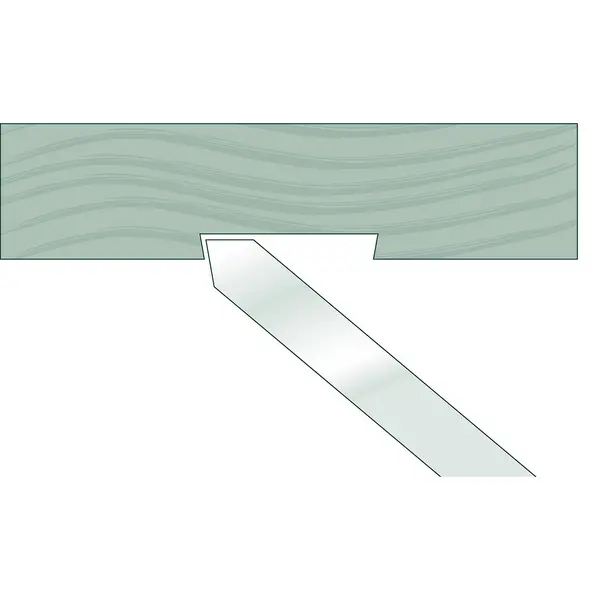

Simply offer one edge of the tool flat against the bottom of the bowl and use the opposite cutting edge of the tool to create either a recess or spigot angled at 80°. The jaws will then fit the workpiece perfectly, ensuring the best possible grip is achieved.

Compatible with the outer dovetail profiles of the following SC1 and SC2 chuck jaws:

• 62303 40 mm Standard Jaws
• 62302 Pin Jaws

Compatible with the outer dovetail profiles of the following SC3 and SC4 chuck jaws:

• 62321 35 mm Standard Jaws
• 62313 50 mm Standard Jaws
• 62322 75 mm Heavy Bowl and Gripper Jaws
• 62323 Long Nose Jaws
• 62329 100 mm Dovetail and Deep Gripper Jaws
• 62317 130 mm Dovetail Jaws
• 62327 Pin Jaws with 9 mm Bore

Compatible with the inner dovetail profiles of the following SC3 and SC4 chuck jaws:

• 62322 75 mm Heavy Bowl and Gripper Jaws
• 62329 100 mm Dovetail and Deep Gripper Jaws
• 62317 130 mm Dovetail Jaws

Dovetail Tool with 80° Angle
